Scheme

MPC-D 09 , 12 a 18

  a c c1 c2 c3
MPC-D 09, 12 44 79 109 124 131
+ 4 mm with plumbing case
X = 10 mm close proximity
MPC-D 25, 32

  c c1 c2 c3
MPC-D 25 94 124 136 146
MPC-D 32 99 129 141 151
+ 4 mm with plumbing case
X = 10 mm close proximity
MPC-D 40, 50, 65



(1) Ochranný kryt
+ 4 mm with plumbing case
X = 10 mm close proximity

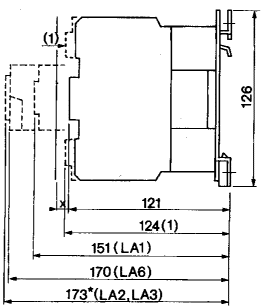

MPC-D 80



(1) Ochranný kryt
+ 4 mm with plumbing case
X = 10 mm close proximity



back to the List of Contents

Technical data of the contactors ELES

Technical data
Contactors ELES : they are suitable especially to switch three-phase asynchronous motors
Current loading (A): 9 to 95
Category AC - 3 (three-phase alternative current) - squirrel-cage motors, motors can be switched on and of in full action
Control voltage AC 230 V 50/60 Hz (alternative current)
Design air structure (the contacts work in air atmosphere at normal athmospheric pressure)
Mounting D 09 and D 32 onto the DIN strip
Mounting D 40 to D 95 onto the DIN strip and also the possibility of being screwed on
Mounting position vertical and horizontal
In compliance with the standard ČSN EN 60 947-4

Nominal outputs of three-phase motors with AC-3

Type

Voltage

230V

Voltage

400V

Voltage

480V

Voltage

660V

Unit

MPC-D 09

2,2

4

4

5,5

kW

MPC-D 12

3

5,5

5,5

7,5

kW

MPC-D 18

4

9

9

10

kW

MPC-D 25

5,5

11

11

15

kW

MPC-D 32

7,5

15

15

18,5

kW

MPC-D 40

11

18,5

18,5

30

kW

MPC-D 50

15

22

22

33

kW

MPC-D 65

18,5

30

30

37

kW

MPC-D 80

22

37

37

45

kW

MPC-D 95

27

45

45

55

kW

Technical data of auxiliary contacts for contactors ELES :

Auxiliary front contacts :



Advantageous simple connection

Delivered with 2 as well as 4 contacts

Note:

The contactors ELES are fully compatible with other accessories, commonly available at our market, as side auxiliary contacts, timers and others which will be delivered by us gradually
