Circuit Protection Devices » BONEGA® P-E-P Miniature Circuit Breakers

Commercial advantages

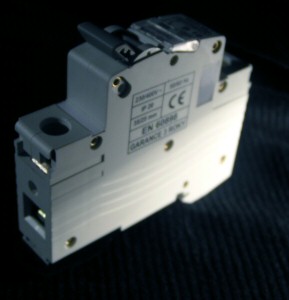

Jistič BONEGA®PEP - tmavý

P-E-P (Perfect Electric Protector)



List of advantages:

1. Excellent Quality

2. Three Year Warranty

3. Full Range of Products

4. Custom Orders

5. Colored Control Levers

6. Worldwide Unique MCB

7. Awards

8. Always Something More

9. Patented

10. Versatility

11. An Easy Link-Up of the Accessories from Both Sides of the MCB

12. Protection Against Hacking of an MCB

13. Production Flexibility

14. Conveniently Packed and Labeled

15. BONEGA® P-E-P MCB's Work Reliably with a Frequency of both 50, and 60 Hz

16. International Certification

17. Aesthetical Design

18. BONEGA® P-E-P the Future


Download price list

The miniature circuit breaker BONEGA®P-E-P was awarded the prize The gold product at the BAEL Fair in Ostrava

3 years guaranteed

1. Excellent Quality

You will get the highest quality MCB.

Even though it is one of the most advanced miniature circuit breakers in the world Gold Amper 2005 is very affordable.



More information: download price list

2.  Three Year Warranty

Guaranteed high quality and reliability.

  The unique resistant construction and careful product control ensure error free use backed by our three year warranty.

to the top



3. Full Range of Products

All combinations as well as special types.

The entire conception for individual combinations is based on the production of just single-module MCB´s from which it is possible to form any combinations, e.g. 1P (pole), 2P, 3P, 4P, 1P+N (zero = switch), 3P+N. All the combinations are available both with the curve B,C, and D.


It is possible to produce the values from 0,5 up to 63A ( in any ampere value, i.e. scale even with only 1 A).

They have been designed for alternative current (AC), but can be used for direct current (DC)*.

* Contact technical support.



Our superior quality DC MCB's are available by special order. Contact us for more details.

4. Custom Orders

Custom orders at a competitive price.

We can tailor make your order.

to the top

5. Colored Control Levers

The colored levers improve the transparency
and comply with the requirements of power plants.

We supply both colored levers and black levers in accordance with the nominal current values (corresponding to the marking of turn fuses).



0,2 A - 1,6 A black
2 A pink
4 A brown
6 A green
8 A light green
10 A red
13 A sandy
16 A grey
20 A blue
25 A yellow
32 A purple
40 A black
50 A white
63 A copper-coloured

6. Worldwide Unique MCB

One of the most outstanding MCB's in the world.

No MCB has such excellent parameters with so many advantages.

We are leading the way in MCB future technology.

to the top

7. Awards

The awards prove the exceptional capacity
of the MCB´s BONEGA® P-E-P.

The miniature circuit breaker BONEGA®P-E-P was awarded the prize The gold product at the BAEL Fair in Ostrava



8. Always Something More

Compare our products.

Compare our miniature circuit breaker with any other MCB of the same category. You can find always something more with the MCB BONEGA® P-E-P.

to the top

9. Patented

The BONEGA® P-E-P MCB's are patent-protected.

Our MCB's are patent-protected.



The whole MCB is also protected as an industrial design.

10. Versatility

No need to buy any expensive combined devices elsewhere.

The height of the MCB terminals corresponds to other electrical devices BONEGA® , such as current protectors, modular switches etc. the mutual interconnection enables to form combined devices.



For example, the combination of the MCB 1P + N along with a double-pole protective switch or the MCB 3P + N along with a four-pole current protective switches (see protective switches ). This interconnection can be reached easily by means of a 2P or 4P interconnecting strip (see accessories to the MCB´s).

to the top

11. An Easy Link-Up of the Accessories from Both Sides of the MCB

A fast connection of the accessories.



The numerous accessories can be linked-up from both sides of the MCB. The interconnection with the MCB is done as follows:

  1. Remove the grey self-adhesive plate, which covers the interconnecting pole on the left or right side (with nail or screwdriver) in accordance with the type of the accessories.
  2. Set up the MCB into the OFF position.
  3. With an easy “snapping” into place without any tools, connect the accessories to the MCB.

The miniature circuit breakers can be linked-up with many accessories. (low-volt releases, ejecting coils, auxiliary contacts, etc.)


All those elements extend the application of the MCB by overvoltage or undervoltage protection, control, regulation, remote control, remote indication of switch-on and switch-off positions of the circuit breaker, programming and measurement. Those combinations enable the circuit breakers to be applied in the range of control of the complicated automated processes.



These elements can be mutually interconnected (e.g. MCB + undervoltage release + auxiliary indicating contact etc.), thus they can form different combinations.

to the top

12. Protection Against Hacking of an MCB

We comply with the requirements of distribution
companies for disassembly protection.

The multi-pole MCB´s BONEGA® P-E-P cannot be disassembled in such a way that only the interconnection between stretching levers would be removed and the individual poles could function separately (e.g. through this, the day and night tariff rate could be influenced). Especially the distribution companies call for this property.


The mutual phases interconnection does not happen just between the levers, but also by means of pins which are put between the pole and they interfere directly into the inside mechanisms through a side hole. In addition, the multi-pole design is connected with rivets. The interconnecting and covering strip, which is between the levers, is visibly depreciated. Any interference in a MCB is obvious at first sight.


13. Production Flexibility

We will reply to special requests within 48 hours.

Production is flexible and special types are made upon request, usually within 48 hours.

to the top

14. Conveniently Packed and Labeled

MCB's come in an easy access case.

The cases are intended for 12 modules so there are either 12 pcs. single-pole MCB's, 6 pcs. two-poles MCB's, 4 pcs. three-pole MCB's or three pcs. four-pole MCB's in one case (total weight of circuit breakers in one case amounts to approx. 1,3 kg).



» Weights



One side of the case, there is a label put on, describing especially the type, curve, nominal current value and number of pieces.
If there are more types in one case, types and number of pieces are marked on the label to be added manually, when packing. We are sure you will appreciate this type of packing not only on collection of the delivered goods, but also on job site.


15. BONEGA® P-E-P MCB's Work Reliably with a Frequency of Both 50 and 60 Hz

Suitable for US.

The change of frequency has no influence on the MCB function.

16. International Certification

Sale abroad is even easier.

Thanks to the successful CB test, which is valid in 46 countries worldwide, the approval procedure for our MCB's and their industrial installation can be accelerated significantly.

to the top

17. Aesthetically Designed

Modern round shapes.

Because of its aesthetic appearance, they'll fit together with the modern switchboard.



18. BONEGA® P-E-P ... the Future

On the horizon.

BONEGA® P-E-P's planned products:

to the top
