BONEGA® EV-6P Residual Current Devices (RCD)

(also called RCCB - Residual Current Circuit Breakers or ELCB - Earth Leakage Circuit Breakers)



Contents of this side:
Other information:
Terms of delivery
information on claims
Certificates and declarations
How to buy at our company







Characteristics

Residual Current Devices BONEGA® EV-6P provide disconnection, switching and earth-fault protection of circuits. They have an electromagnetic residual-current release working without any auxiliary power source. This release disconnects automatically the circuit if the earth fault current between phase and earth is greater than the nominal residual current I/\n.

- standard type for common application at households and industrial installations up to 63 A, AC 230/400V
- for protection of live parts I/\n?30mA)
- for fire or short-circuit protection of lifeless parts (of buildings, machines etc. ), if the insulating capability of any devices has been reduced (I/\n?100mA)
- they are designed for work with alternative current
- they include the filtering apparatus to avoid the unwished switching-off caused by different network failures

- colourful indication of switch-on and switch-off positions

- marked with logo BONEGA®

- manufactured in compliance to the standard CSN EN 61 008

- 2 years guarantee

These Residual Current Devices can be interconnected with the Miniature circuit breakers BONEGA by means of interconnecting strips.

back to the List of Contents

Technical data

Technical data

Number of poles 2,4
Type: AC
Nominal currents: 0-6, 0-10, 0-13, 0-16, 0-20, 0-25, 0-32, 0-40, 0-63 A
Nominal voltage: 2P 230 V 50/60 Hz
4P 230/400 V 50/60 Hz
Nominal conditioned short-circuit resistance: 6000 A
Max. pre-arranged short-circuit fuse: 63 A gG
Nominal residual current I/\n 30, 100, 300 mA
Protection IP 20
Max. conductor cross-section 35 mm2
Fastening: onto the strip DIN EN 50 022
Switch-off indication: with red parachute
Lifetime: 1000 switching cycles

back to the List of Contents

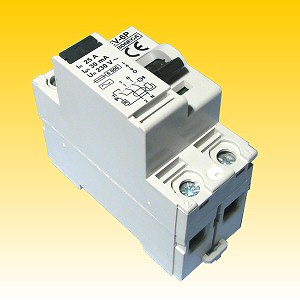

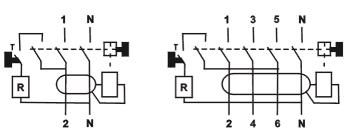

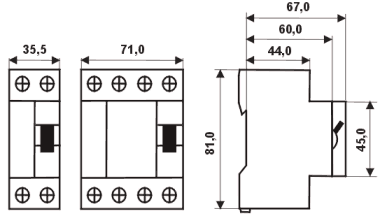

Figures of RCD BONEGA® EV-6P

back to the List of Contents

Range of goods - Residual Current Devices (RCD) BONEGA® EV-6P

Residual Current Devices BONEGA® EV-6P

Order Code

Item

Quantity

Packing pcs./case

04-2060302 EV RCD BONEGA® EV-6P 2P 0 to 6A/ 30 mA

1 pce

6
04-2061002 EV RCD BONEGA® EV-6P 2P 0 to 6A/100 mA 1 pce 6
04-2063002 EV RCD BONEGA® EV-6P 2P 0 to 6A/300 mA 1 pce 6
04-2100302 EV RCD BONEGA® EV-6P 2P 0 to10A/ 30 mA

1 pce

6
04-2101002 EV RCD BONEGA® EV-6P 2P 0 to 10A/100 mA 1 pce 6
04-2103002 EV RCD BONEGA® EV-6P 2P 0 to 10A/300 mA 1 pce 6
04-2130302 EV RCD BONEGA® EV-6P 2P 0 to 13A/ 30 mA

1 pce

6
04-2131002 EV RCD BONEGA® EV-6P 2P 0 to 13A/100 mA 1 pce 6
04-2133002 EV RCD BONEGA® EV-6P 2P 0 to 13A/300 mA 1 pce 6
04-2160302 EV RCD BONEGA® EV-6P 2P 0 to 16A/ 30 mA

1 pce

6
04-21601002 EV RCD BONEGA® EV-6P 2P 0 to 16A/100 mA 1 pce 6
04-21603002 EV RCD BONEGA® EV-6P 2P 0 to 16A/300 mA 1 pce 6
04-2200302 EV RCD BONEGA® EV-6P 2P 0 to 20A/ 30 mA

1 pce

6
04-2201002 EV RCD BONEGA® EV-6P 2P 0 to 20A/100 mA 1 pce 6
04-2203002 EV RCD BONEGA® EV-6P 2P 0 to 20A/300 mA 1 pce 6
04-2250302 EV RCD BONEGA® EV-6P 2P 0 to 25A/ 30 mA

1 pce

6
04-2251002 EV RCD BONEGA® EV-6P 2P 0 to 25A/100 mA 1 pce 6
04-2253002 EV RCD BONEGA® EV-6P 2P 0 to 25A/300 mA 1 pce 6
04-2320302 EV RCD BONEGA® EV-6P 2P 0 to 32A/ 30 mA

1 pce

6
04-2321002 EV RCD BONEGA® EV-6P 2P 0 to 32A/100 mA 1 pce 6
04-2323002 EV RCD BONEGA® EV-6P 2P 0 to 32A/300 mA 1 pce 6
04-2400302 EV RCD BONEGA® EV-6P 2P 0 to 40A/ 30 mA

1 pce

6
04-2401002 EV RCD BONEGA® EV-6P 2P 0 to 40A/100 mA 1 pce 6
04-2403002 EV RCD BONEGA® EV-6P 2P 0 to 40A/300 mA 1 pce 6
04-2630302 EV RCD BONEGA® EV-6P 2P 0 to 63A/ 30 mA 1 pce 6
04-2631002 EV RCD BONEGA® EV-6P 2P 0 to 63A/100 mA 1 pce 6
04-2630002 EV RCD BONEGA® EV-6P 2P 0 to 63A/300 mA 1 pce 6
04-4060302 EV RCD BONEGA® EV-6P 4P 0 to 6A/ 30 mA 1 pce 3
04-4061002 EV RCD BONEGA® EV-6P 4P 0 to 6A/100 mA 1 pce 3
04-4063002 EV RCD BONEGA® EV-6P 4P 0 to 6A/300 mA 1 pce 3
04-4100302 EV RCD BONEGA® EV-6P 4P 0 to 10A/ 30 mA 1 pce 3
04-4101002 EV RCD BONEGA® EV-6P 4P 0 to 10A/100 mA 1 pce 3
04-4103002 EV RCD BONEGA® EV-6P 4P 0 to 10A/300 mA 1 pce 3
04-4130302 EV RCD BONEGA® EV-6P 4P 0 to 13A/ 30 mA 1 pce 3
04-4131002 EV RCD BONEGA® EV-6P 4P 0 to 13A/100 mA 1 pce 3
04-4133002 EV RCD BONEGA® EV-6P 4P 0 to 13A/300 mA 1 pce 3
04-4160302 EV RCD BONEGA® EV-6P 4P 0 to 16A/ 30 mA 1 pce 3
04-4161002 EV RCD BONEGA® EV-6P 4P 0 to 16A/100 mA 1 pce 3
04-4163002 EV RCD BONEGA® EV-6P 4P 0 to 16A/300 mA 1 pce 3
04-4200302 EV RCD BONEGA® EV-6P 4P 0 to 20A/ 30 mA 1 pce 3
04-4201002 EV RCD BONEGA® EV-6P 4P 0 to 20A/100 mA 1 pce 3
04-4203002 EV RCD BONEGA® EV-6P 4P 0 to 20A/300 mA 1 pce 3
04-4250302 EV RCD BONEGA® EV-6P 4P 0 to 25A/ 30 mA 1 pce 3
04-4251002 EV RCD BONEGA® EV-6P 4P 0 to 25A/100 mA 1 pce 3
04-4253002 EV RCD BONEGA® EV-6P 4P 0 to 25A/300 mA 1 pce 3
04-4320302 EV RCD BONEGA® EV-6P 4P 0 to 32A/ 30 mA 1 pce 3
04-4321002 EV RCD BONEGA® EV-6P 4P 0 to 32A/100 mA 1 pce 3
04-4323002 EV RCD BONEGA® EV-6P 4P 0 to 32A/300 mA 1 pce 3
04-4400302 EV RCD BONEGA® EV-6P 4P 0 to 40A/ 30 mA 1 pce 3
04-4401002 EV RCD BONEGA® EV-6P 4P 0 to 40A/100 mA 1 pce 3
04-4403002 EV RCD BONEGA® EV-6P 4P 0 to 40A/300 mA 1 pce 3
04-4630302 EV RCD BONEGA® EV-6P 4P 0 to 63A/ 30 mA 1 pce 3
04-4631002 EV RCD BONEGA® EV-6P 4P 0 to 63A/100 mA 1 pce 3
04-4633002 EV RCD BONEGA® EV-6P 4P 0 to 63A/300 mA 1 pce 3
