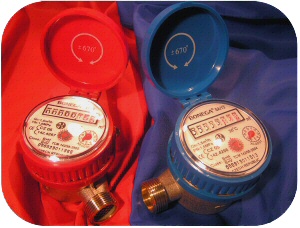

Water-meters without increased antimagnetic resistance
|
|
1/2" a 3/4" water-meters BONEGA® for cold water up
to + 30 °C |
Order Code |
Clearance (mm-inch) |
Installation length (mm) |
Nominal flow-rate Qn (m3/h) |
1/2" BONEGA-S/13-110-1,5-B |
13-1/2" |
110 |
1,5 |
3/4" BONEGA-S/20-130-2,5-B |
20-3/4" |
130 |
2,5 |
|
|
1/2" a 3/4" water-meters BONEGA® for warm water up
to + 90 °C |
Order Code |
Clearance (mm-inch) |
Installation length (mm) |
Nominal flow-rate Qn (m3/h) |
1/2" BONEGA-T/13-110-1,5-B |
13-1/2" |
110 |
1,5 |
3/4" BONEGA-T/20-130-2,5-B |
20-3/4" |
130 |
2,5 |
|
|
Water-meters WITH increased antimagnetic resistance
|
|
1/2" a 3/4" antimagnetic water-meters BONEGA® for
cold water up to + 30 °C |
Order Code |
Clearance (mm-inch) |
Installation length (mm) |
Nominal flow-rate Qn (m3/h) |
1/2" BONEGA-SA/13-110-1,5-B |
13-1/2" |
110 |
1,5 |
3/4" BONEGA-SA/20-130-2,5-B |
20-3/4" |
130 |
2,5 |
|
|
1/2" a 3/4" antimagnetic water-meters BONEGA® for
warm water up to + 90 °C |
Order Code |
Clearance (mm-inch) |
Installation length (mm) |
Nominal flow-rate Qn (m3/h) |
1/2" BONEGA-TA/13-110-1,5-B |
13-1/2" |
110 |
1,5 |
3/4" BONEGA-TA/20-130-2,5-B |
20-3/4" |
130 |
2,5 |
|
|
Screw joints
|
|
Brass screw joints with a hole incl. packing (with two pieces in a set) |
Order Code |
Type of screw joints |
1/2" BONEGA®- MS - OT |
A screw joint set for ½” water-meters (2x ¾” cap nut 30 mm with holes
for possible sealing, 2x sleeve with hexagon 20 mm, 20 mm, 2 x packing) |
3/4" BONEGA®- MS - OT |
A screw joint set for 3/4 " water-meters (2 x 1" cap nut 37 mm with
holes for possible sealing, 2x sleeve with hexagon 24 mm, 2 x packing) |
|
|
Brass screw joints with an “eye” incl. packing (with two pieces in a set) |
Order Code |
Type of screw joints |
1/2" BONEGA®- MS - OU |
A screw joint set for ½” water-meters (2x ¾” cap nut 30 mm with “eyes”
for possible sealing, 2x sleeve with hexagon 20 mm, 20 mm, 2 x packing) |
3/4" BONEGA®- MS - OU |
A screw joint set for 3/4 " water-meters (2 x 1" cap nut 37 mm with
holes for possible sealing, 2x sleeve with hexagon 24 mm, 2 x packing) |
|
