Circuit Protection Devices

BONEGA® P-E-P 6 DPN Circuit Breakers

(MCB + switch in one module)

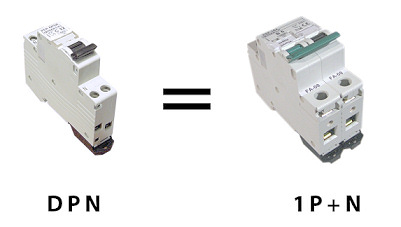

The BONEGA® P-E-P DPN Circuit Breaker (hereinafter called DPN) couples the advantages of the world-wide unique DPNs BONEGA® P-E-P and the switches BONEGA® into one module. They can replace the hitherto applied double-modular devices 1P+N successfully.

Technical parameters


Price list

3D animations

First in the world with 6kA short-circuit resistance. The same safety as for 1P+N, place saving,

3 roky záruka

Advantages gained when using the DPN BONEGA® P-E-P:



The same safety as for 1P+N

The DPN BONEGA® P-E-P has increased the world-wide limit of breaking capacity from 4,5 to 6 kA (according to the standard CSN EN 60898).



» More about technical advantages

» More about high reliability




Saving of place

They have replaced the hitherto applied double-modular devices 1P+N whereby they save the place within a switchboard.
In this way, they enable to use smaller switchboards.








Quicker installation and easier operation

They have maintained the advantages of the world-wide unique MCBs BONEGA® P-E-P – e.g. failure signaling, quicker assembly, high reliability etc.



» More about installation advantages




Cost reduction

The DPN are more budget-priced than the double-modular devices.



» More about commercial advantages


Print your own inscriptions

» Download template
